Structural Steel

Structural steel is a category of steel used for making construction materials in a variety of shapes. Many structural steel shapes take the form of an elongated beam having a profile of a specific cross section.

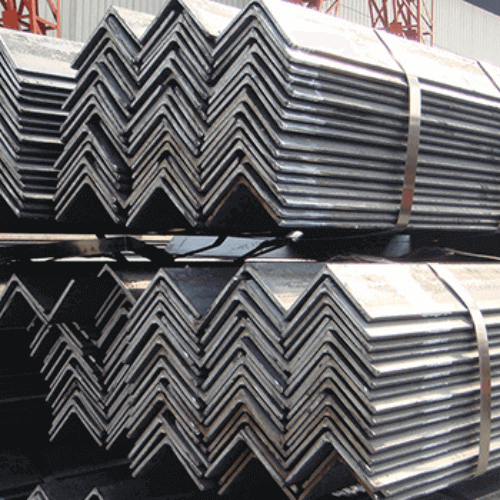

MS ANGLE

Used in various construction, engineering, and fabrication activities like structure framings, brackets, trims, etc.

Equal Angles

Size - 25 mm x 25 mm upto 250 mm x 250 mm
Thickness – 03 mm to 30 mm

Un-Equal Angles

45 mm x 30 mm x 04 mm
45 mm x 30 mm x 05 mm

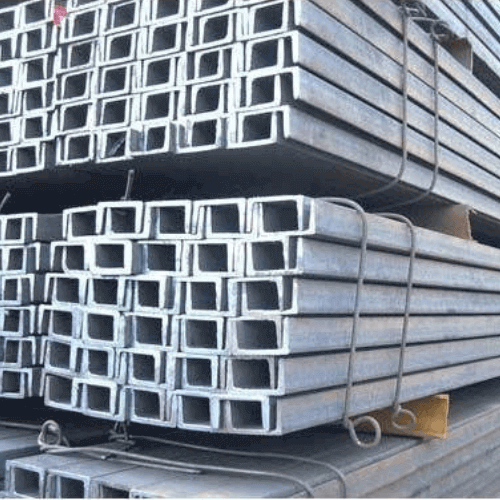

MS CHANNEL

Used for general construction and engineering industries along with in the manufacturing of shipbuilding, boilers, agricultural equipment, generator frames, factory sheds, mechanized parking systems, conveyors, etc.

75 mm x 35 mm upto 200 mm x 75 mm
ISMC – Indian Channel – 250 mm x 82 mm upto 400 mm x 100 mm

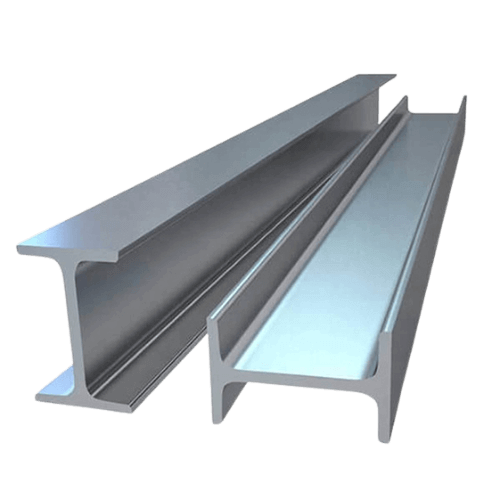

MS BEAMS - COLUMNS - UB - UC - ISMB

Widely used in the construction industry for laying a strong foundation for buildings, structures, etc. enabling them to have the required load-bearing capacity & stay stable.

I & H BEAMS

100 mm x 50 mm upto 600 mm x 210 mm

UNIVERSAL BEAM (UB) (mm x mm x kg/m sectional weight)

203 mm x 133 mm x 25 kg/m upto 610 mm x 229 mm x 140 kg/m

UNIVERSAL COLUMN (UC) (mm x mm x kg/m sectional weight)

152 mm x 152 mm x 23 kg/m upto 356 mm x 356 mm x 202 kg/m

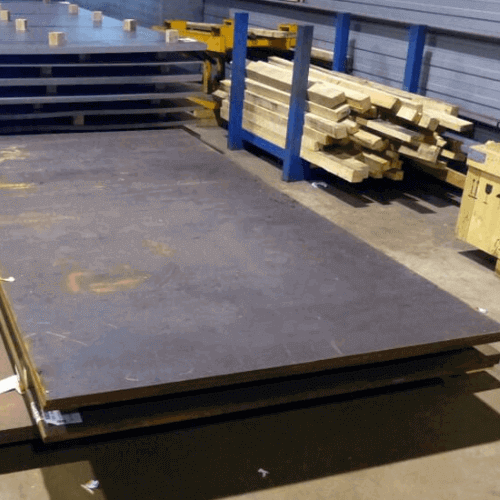

MS PLATES

Used in Machine Building, Architectural Structures, Construction, Structural Framework, Shipping Containers, Truck Frames, etc.

Grade – E 250 / E 350 / E 450 / Hot Rolled Medium & High Tensile Structural Steel – IS 2062
Thickness – 02 mm upto 150 mm

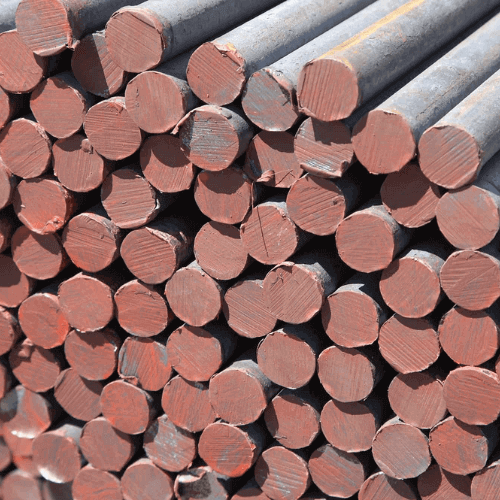

MS ROUND BARS

Used in the Forging Industry, Bright Bar Industry, Fabrication Industry, Auto-Ancillaries, foundations and anchor bolts, pins, rollers, bushes, etc. with many more engineering industries.

Size – 10 mm to 230 mm

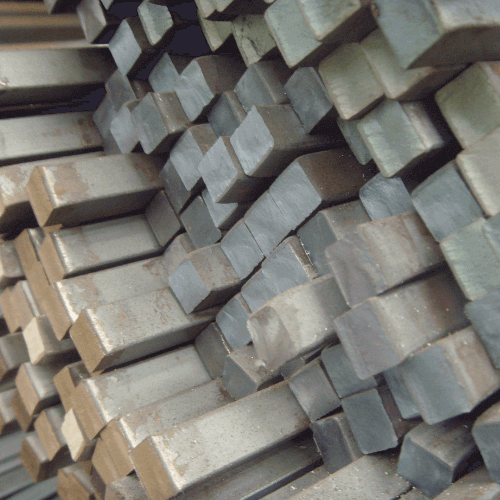

MS SQUARE BARS

Used in Crane Gantry, Bullock Cart Axles, Conveyors, Trucks, Trailers, etc. with many more engineering industries.

Size – 10 mm x 10 mm upto 63 mm x 63 mm

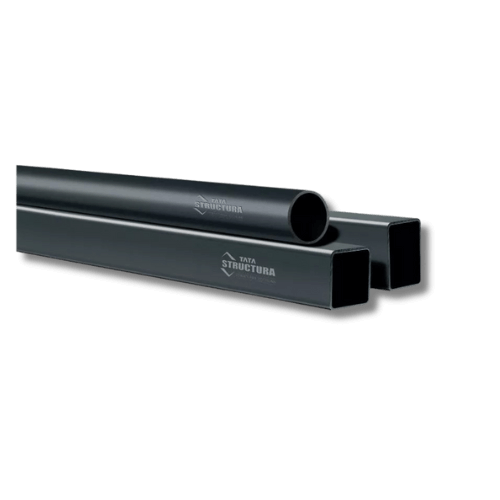

STEEL HOLLOW SECTIONS

Has multiple applications ranging from architectural, industrial, infrastructural, general engineering, steel industry, railways, airports, Power Plants, etc., including Solar Power plants, agricultural structures, etc.

Make – TATA Steel under the Brand name TATA Structura

Grades – YST 210 / YST 240 / YST 310

Square Hollow Sections

Size - 20 mm x 20 mm upto 250 mm x 250 mm
Thickness – 1.60 mm to 10 mm

Rectangle Hollow Sections

Size - 40 mm x 20 mm upto 300 mm x 200 mm
Thickness – 1.60 mm to 10 mm

Circular Hollow Sections

Size – 15 Nominal Bore Diameter to 300 Nominal Bore Diameter
Thickness – 01 mm to 10 mm

Tata Structura Z+ - Galvanized Steel Hollow Sections are also available on request.
